Copper Nickel Plates & Sheets

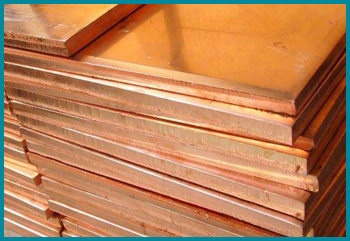

Copper Nickel Alloy 70/30 Plates & Sheets
Copper Nickel Alloy 70/30 Plates | ASTM B151 UNS C71500 70/30 Plates & Sheets Manufacturer In India
Cupro Nickel 70/30 Plates & Sheets Coils | Cu-Ni 70/30 Plates & Sheets Coils Exporter | ASTM B171 UNS C71500 70/30 Plates & Sheets
Being an established association, Expinox Alloys are putting forth a colossal scope of Copper Nickel 70/30 Plates & Sheets. The offered Copper Nickel 70/30 Plates & Sheets is fabricated under the direction of specialists by utilizing predominant quality copper. Our Copper Nickel 70/30 Plates & Sheets is checked by specialists on various parameters with a specific end goal to convey a defect free range. This Copper Nickel 70/30 Plates & Sheets is exceedingly refreshing for their corrosion resistance, rigidity and cost viability.
Expinox Alloys provides Copper Nickel 70/30 Plates & Sheets which has some of the best features such as Excellent mechanical & magnetic properties, High thermal & electrical conductivity and Anti corrosive.
These 70/30 Cu-Ni Plates & Sheets in accessible diverse evaluations, detail and thickness according to the customers necessities. These are broadly utilized as a part of different application industry, for example, Cement industry, Power Industry, Sugar Mills, Chemical Plants, Pharmaceuticals and so on.
Specification
Standard | ASTM B171, ASME SB171 |
---|---|
Grades | CU-NI-70/30 (UNS No C71500) |
Werkstoff Nr | 2.0882 |
Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
Thickness | 1mm – 100mm |
Width | 1000mm – 3000mm |
Application | Chemicals & Fertilizers Industries , Sugar Mills , Cement Industries , Ship Building , Paper Industries , Oil & Gas , Petrochemicals , etc |
Chemical Composition
Grade | Element |
---|---|
Copper, Cu | 70.0 |
Nickel, Ni | 30.0 |
Mechanical Properties
Properties | Metric | Imperial |
---|---|---|
Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
Elongation at break (in 381 mm) | 45.0% | 45.0% |
Charpy impact | 107 J | 78.9 ft-lb |
Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
Shear modulus | 57.0 GPa | 8270 ksi |
Poisson's ratio | 0.34 | 0.34 |
Elastic modulus | 150 GPa | 21800 ksi |
Physical Properties
Properties | Metric | Imperial |
---|---|---|
Density | 8.94 g/cm3 | 0.323 lb/in3 |
Melting point | 2140°F | 1171°C |
Copper Nickel Alloy 90/10 Plates & Sheets
Copper Nickel Alloy 90/10 Plates | ASTM B151/171 UNS C70600 90/10 Plates & Sheets Manufacturer In India
Cupro Nickel 90/10 Plates & Sheets Coils | Cu-Ni 90/10 Plates & Sheets Coils Exporter | ASTM B171 UNS C70600 90/10 Plates & Sheets
Expinox Alloys are among the Manufacturers, Exporters and Supplier of superb 90/10 Cu-Ni Plates & Sheets . We additionally made these items according to national and universal quality norms. Copper nickel is known for its incredible resistance to seawater, and additionally numerous different risky components exhibited to metals.The product, offered by us find wide application in different industries such as automobile, engineering, and oil & gas.
These Copper Nickel 90/10 Sheets and Plates in accessible diverse evaluations, particular and thickness according to the customers necessities. Expinox Alloys additionally offer our customers for mindful cost in the business sector.
Specification
Grades | CU-NI-90/10 (UNS No C70600) |
---|---|
Standard | ASTM B151, ASME SB151 |
Werkstoff Nr | 2.0872 |
Thickness | 1mm – 100mm |
Width | 1000mm – 3000mm |
Production | Hot-Rolled (HR) / Cold-Rolled (CR) |
Application | Chemicals & Fertilizers Industries , Sugar Mills , Cement Industries , Ship Building , Paper Industries , Oil & Gas , Petrochemicals , etc |
Chemical Composition
Grade | Element |
---|---|
Cu | 88.7 |
Fe | 1.3 |
Ni | 10.0 |
Mechanical Properties
Properties | Metric | Imperial |
---|---|---|
Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
Elongation at break (in 254 mm) | 42.00% | 42.00% |
Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
Shear modulus | 52.0 GPa | 7540 ksi |
Poisson's ratio | 0.34 | 0.34 |
Elastic modulus | 140 GPa | 20300 ksi |
Physical Properties
Properties | Metric | Imperial |
---|---|---|
Density | 8.94 g/cm3 | 0.323 lb/in3 |
